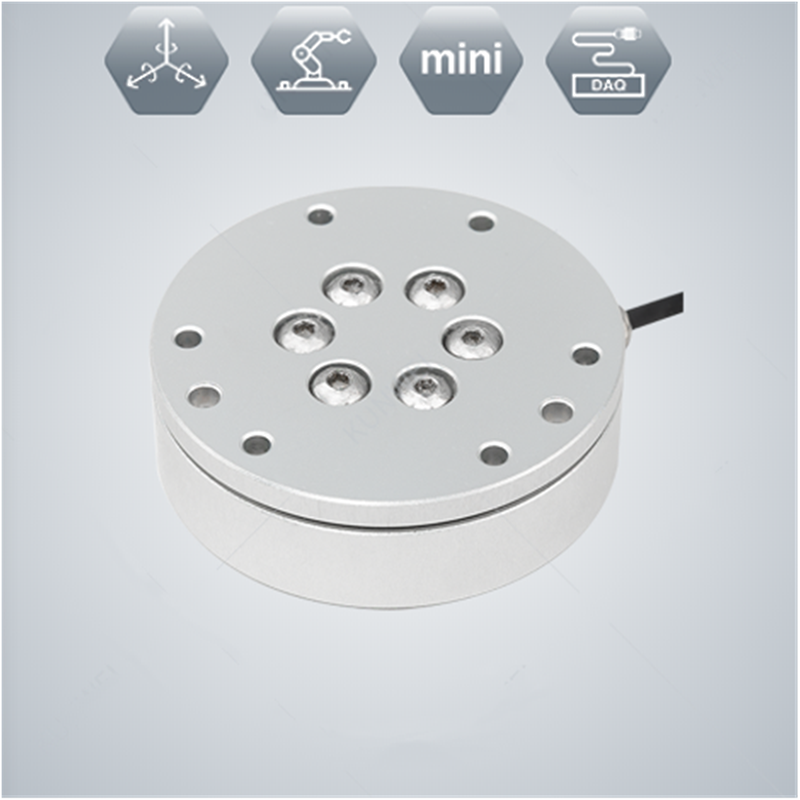

6 Axis Force sensor dimensional load cell Six-Axis Torque Sensor for Robotics CZ-KWR63 SERIES

● PRODUCT INTRODUCTION

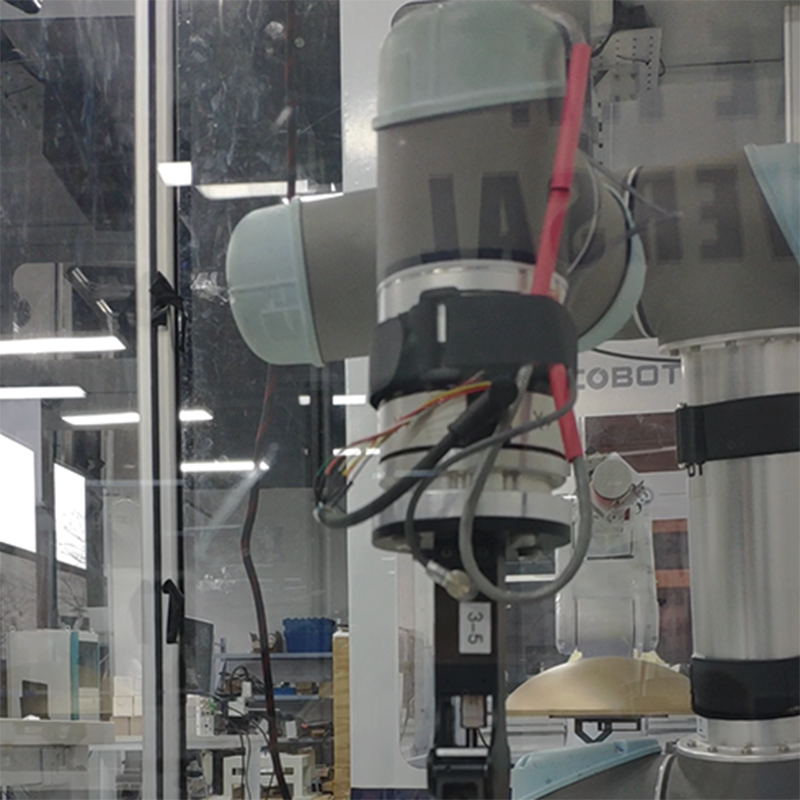

The KWR63 series six-axis force sensor is a compact high-precision force sensor with high rigidity and sensitivity and adopts aero-alloy. It can measure forces and torques in three orthogonal directions in real time. The sensor is designed based on the principle of strain electrical measurement and adopts the six-axis joint calibration technology to improve the accuracy. RS422, RS485, CAN, USB, industrial Ethernet and other communication modes can be realized by connecting different signal acquisition modules. It is close to the outer diameter size of the end of most cooperative robots, and has been applied in scientific research, automatic detection, aerospace testing and other fields.

1. Six axis joint calibration, fully inhibit crosstalk

2. Miniaturized high-precision six-axis force sensor
