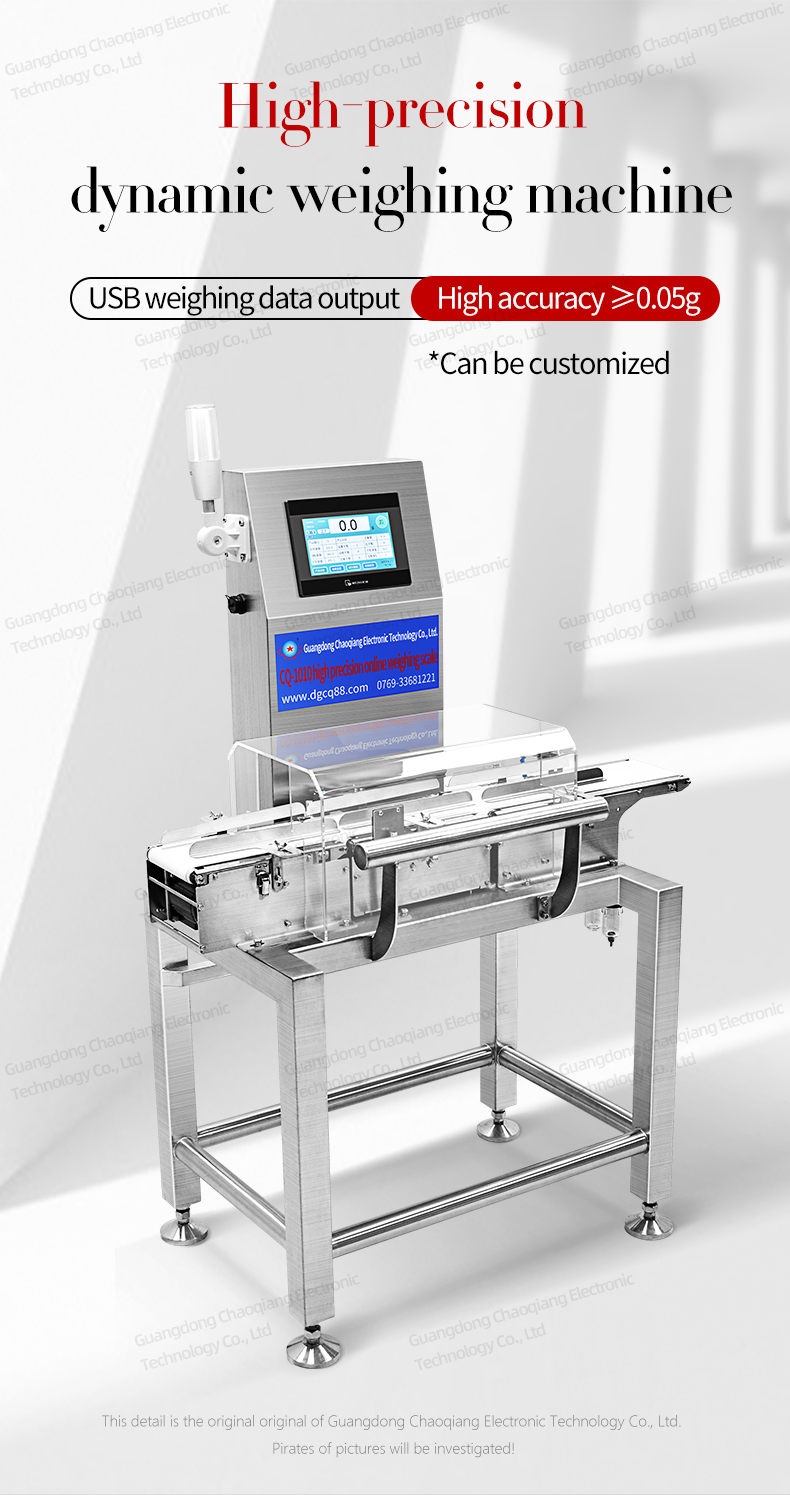

China CQ-XP1010 Online Checkweigher Machine factory and manufacturers | Chengzhou

CQ-XP1010 Online Checkweigher Machine

Short Description:


Product Detail

Product Tags

● Product Features

Strong versatility: the standardization structure of the whole machine and the standardized man-machine interface can complete the weighing of various materials;

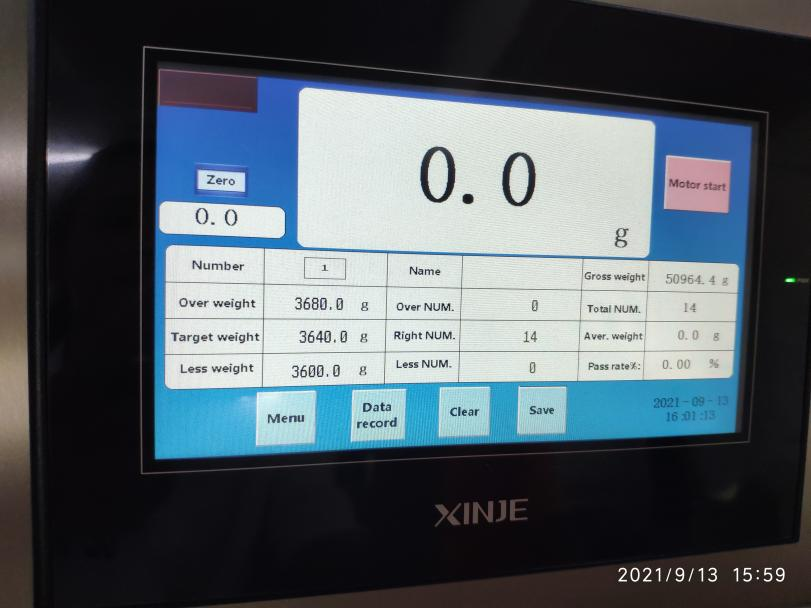

Simple operation: Fully intelligent and humanized design using Weilun color human-machine interface; conveyor belt is easy to disassemble, easy to install and maintain, easy to clean;

Speed adjustable: The motor is controlled by frequency conversion, and the speed can be adjusted according to needs;

High speed and high precision: high precision digital sensor, fast sampling speed and high precision;

Zero tracking: can be manually or automatically cleared, and dynamic zero tracking;

sz-chengzhou (10)
sz-chengzhou (9)
sz-chengzhou (11)
sz-chengzhou (13)
sz-chengzhou (14)
Technical Data Sheet
Power supply AC220V±10% 50HZ(60HZ)
Rated power 0.15KW
Single weighing range ≤200g
Weighing accuracy range ±0.05g~±0.1g
Minimum scale 0.01g
Counterweight combination Speed 20~60m/min
Sorting the highest speed 180  pcs/min
Weighing material length ≤100mm(L)*100mm(W)

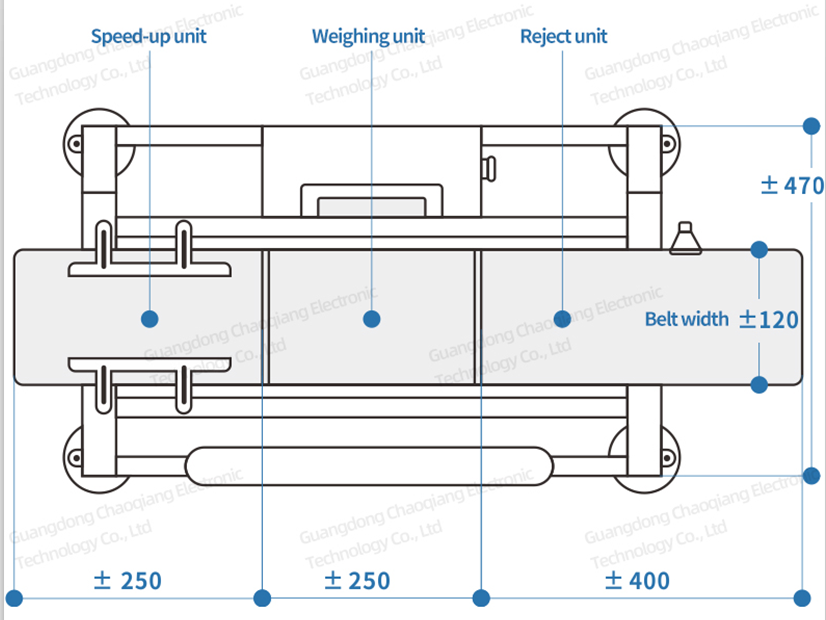

Weighing conveyor belt size 250mm(L)*120mm(W

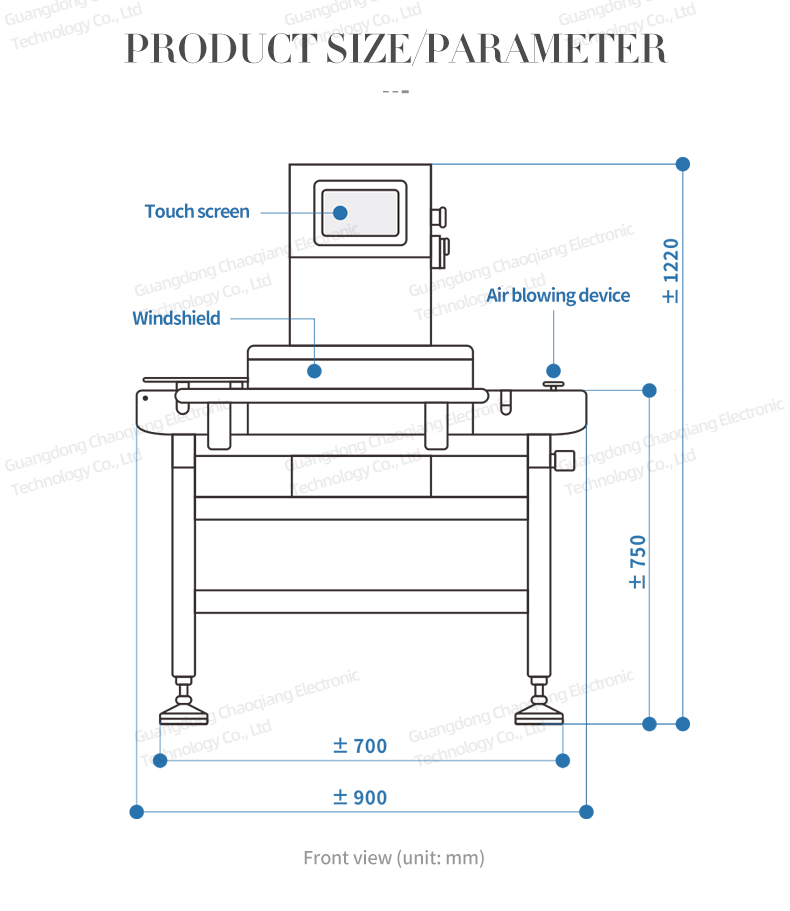

Equipment size 900mm(L)*500mm(W)*1250mm(H)
Rejection method Blowing
Control System High speed A/D sampling controller
Preset product number 100 pcs
Operation direction Facing the machine, from left to right
External air supply 0.6-1Mpa
Pneumatic interface Φ8mm
Working environment Temperature: 0 ° C ~ 40 ° C, Humidity: 30% ~ 95%
Machine material Stainless steel 304/POM
