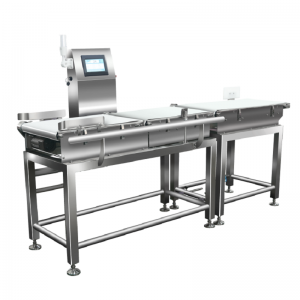

CQ-XP300 Universal Dynamic Checkweigher

Short Description:


Product Detail

Product Tags

● PRODUCT INTRODUCTION

Product Features:

Strong versatility: The standardized structure of the whole machine and the standardized human-machine interface can complete the weighing of various materials;

Easy to operate: use Weilun color man-machine interface, fully intelligent and humanized design; the conveyor belt is easy to disassemble, install and maintain, and is easy to clean;

Adjustable speed: the motor is controlled by frequency conversion, and the speed can be adjusted as required;

High-speed and high-precision: high-precision digital sensors are used, with fast sampling speed and high precision;

Zero tracking: can be manually or automatically cleared, and dynamic zero tracking;

Scope of application

This product is suitable for testing whether the weight of a single product is qualified, and is widely used in electronics, pharmaceuticals, food, beverages, health care products, daily chemicals, light industry, agricultural and sideline products and other industries. Such as cosmetics for daily chemical products (including beauty cosmetics, cleaning, cosmetics, skin care products, hair cosmetics, etc.); washing products (including soap, washing powder, detergent, etc.); oral products (including toothpaste, mouthwash, etc.); Other chemical products (including shoe polish, floor wax, deodorant, insect repellent, etc.).

sz-chengzhou (7)

Model

CQ-XP300

power supply

AC220V±10% 50HZ60HZ

rated power

0.4KW

Single weighing range

≤3000g

Weighing accuracy range

±0.5g~±2g

Minimum scale

0.1g

conveyor speed

2090m/min

Maximum speed

80  pcs/min

Weighing product size

≤300mmL*290mmW

Scale conveyor belt size

450mmL*300mmW

Machine size

1806mmL*855mmW*1180mmH

Reject mode

Pusher

Control System

High-speed A/D sampling controller

Preset product number

100 pcs

Operation direction

Facing the machine, left to right

External air source

0.6-1Mpa

Air pressure interface

Φ8mm

working environment

temperature0℃40℃humidity30%95%

Body material

SUS304
