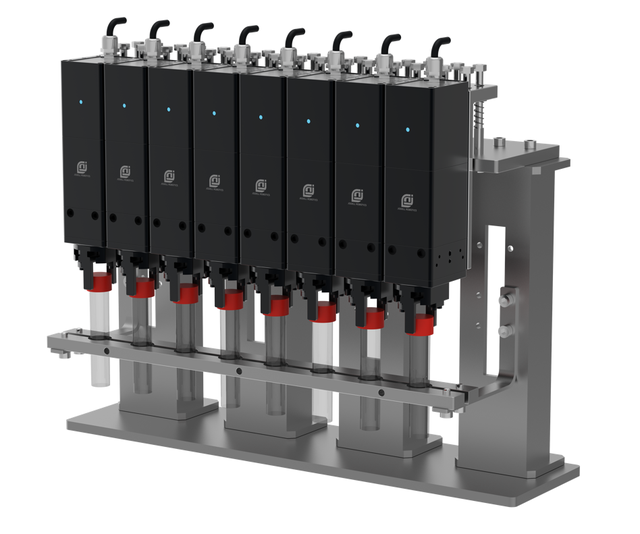

Chengzhou rotary electric claw “in-situ upgrade”
The nucleic acid mixed detection automation equipment realizes the clamping, capping and shifting of the test tube through the clamping jaw. The diameter specification of the test tube under the “20-in-1″ mixed inspection technology becomes thicker, resulting in a corresponding increase in the opening torque of the gripper.
For the mature equipment that has been promoted, if the gripper for opening the lid cannot be compatible with the new test tube, it will bring great challenges to the equipment manufacturer. Redesigning equipment that has already been finalized is time-consuming and costly.
Chengzhou High Torque Rotary Electric Gripper ERG32-150T
Therefore, Chengzhou “in-situ upgrades” the ERG series rotary electric gripper according to the market demand:
The clamping force and torque can be upgraded by simply replacing the upgraded electric gripper product without any changes to the existing equipment.
To achieve “in-situ upgrade”, it is necessary to achieve “four constants”:
1) The dimensions of the jaws remain unchanged;
2) The mechanical installation interface remains unchanged;
3) The electrical interface remains unchanged;
4) The communication mode and control logic remain unchanged.
“In-situ upgrade” and “four unchanged” are not the standards set by the nucleic acid mixed detection automation equipment manufacturers for the gripper manufacturers, but the requirements for their own products after the Junruo robot has concluded.
Do a good job of “in-situ upgrade” and “four unchanged”, and put forward higher requirements for the adjustable stroke, clamping force, rotating torque and other indicators of the gripper. At the same time, it is also required that the gripper jaws with enhanced performance can be well compatible with the equipment.
ERG32-150T is upgraded from ERG32-150 in situ
Star Product – Rotary Electric Gripper
Accurate understanding and grasp of customer needs, coupled with profound technical background, let Junruo Robot take the lead in developing ERG series rotary electric grippers in 2020, which quickly met the needs of the market.
This series of products has strong system stability and nearly 100% opening rate. It can be integrated and compatible with EtherCat bus and Modbus RTU bus within the product. It has become a classic product with high maturity and is widely used in medical automation samples. Pre-processing field and 3C product assembly field.
At present, the ERG series rotary electric gripper has served more than 200 medical automation customers, and has sold nearly 10,000 units, becoming a phenomenal star product in this segment.
Chengzhou Rotary Electric Gripper ERG32-150
In terms of product parameters, Chengzhou ERG32-150 rotary electric gripper has an adjustable stroke of 32mm, a maximum gripping force of 150N, and a maximum rotational torque of 1Nm. The index is about 3 times that of competing products of the same volume at home and abroad. Compatible with most test tubes of different diameters and materials on the market, the success rate of opening the cap is as high as 99.99%.
The gripper can be used with the EPG series modular electric gripper to be used in the automatic nucleic acid detection system in test tube sample scanning → test tube sample handling → test tube clamping under test tube → test tube capping → pipetting and cupping → test tube tightening and other procedures. Improve operator safety and prevent secondary contamination of test tubes.
It is understood that the pathogen detection pre-processing workstation integrated with the gripper can handle more than 120,000 person-times per day, which is more than 20 times higher than manual throughput. After the pre-processing workstation completes the cup division, the samples are directly subjected to subsequent nucleic acid extraction, detection and other processes, without manual operation throughout the process, truly realizing the automation of the whole process.
“King Product” is gaining momentum
With the accumulation of technology, capital blessing, and the potential of industrial development, Chengzhou will launch products with stronger comprehensive performance. The CEO revealed that “Wang Fried Products” is ready to go.
