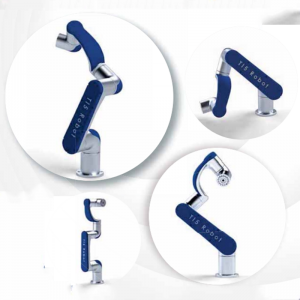

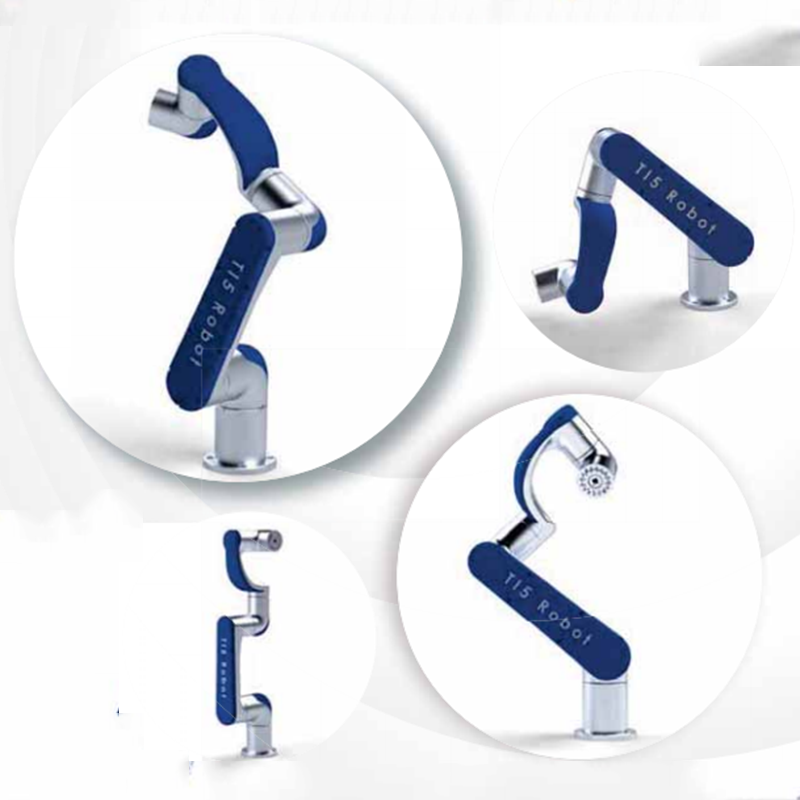

TI5ROBOT COLLABORATIVE ROBOT
"Ti5robot vision" is based on intelligent robot hardware supply solutions, driven by intelligent innovation, and guided by the R&D, production and manufacturing of robot equipment. It provides customers with cost-effective intelligent robot hardware and somato- sensory control technology solutions, and continuously outputs and creates value.
CUSTOMlzED SERvlCE
Solve the problem that the standard machine on the market can't meet the demand for customers.
Save product development cycle for customers. Alleviate the shortage of hardware technical talents for customers.
SUPERB COLLABORATlON ABlLlTY
As a new type of intelligent robot, it is dedicated to removing the obstacles of human-machine cooperation.
Let the robot get rid of the shackles of guardrails or cages completely.
| Basic parameters | Ti5RobotEblm-1 |
| Weight | 2.3kg |
| Payload | 1kg |

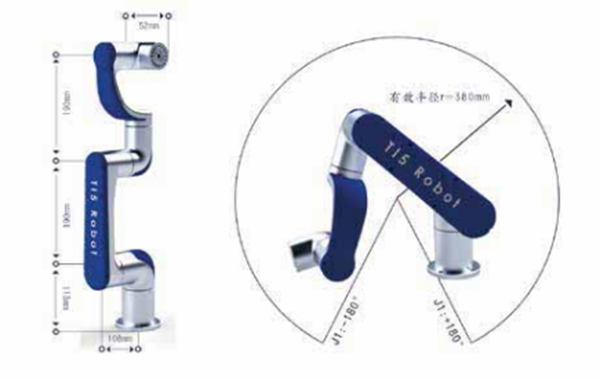

| Working radius | 380mm |
| Repetitive posit- ioning accuracy | 0.05mm |
| Freedom | 6 |
| Typical power consumption | 50w |
| Interface with control | ROS control, PYBULLET control, raspberry pie control, PYTHON control, C++ control |
| Electrical machinery | Flexible torque motor+harmonic reducer |
| Mains | 24-48V |
| Joint range | J1（+/-180。）J2（-265。~85。）J3（+/-150。） J4（+/-180。）J5（+/-175。）J6（+/-175。） |
| Material | Aluminum alloy, resin |
| Working Environment | 0。C - 50。C |
| Electricity supply | DC 48V,5A;DC 24V,5A |
| Motor parameters | Integrated joint of hollow harmonic robot |
| Bluetooth | 4.2 |
| USB | 4 |
| HDMI | 1 |
| IO interface | 4 |
| Emergency switch | 1 |
